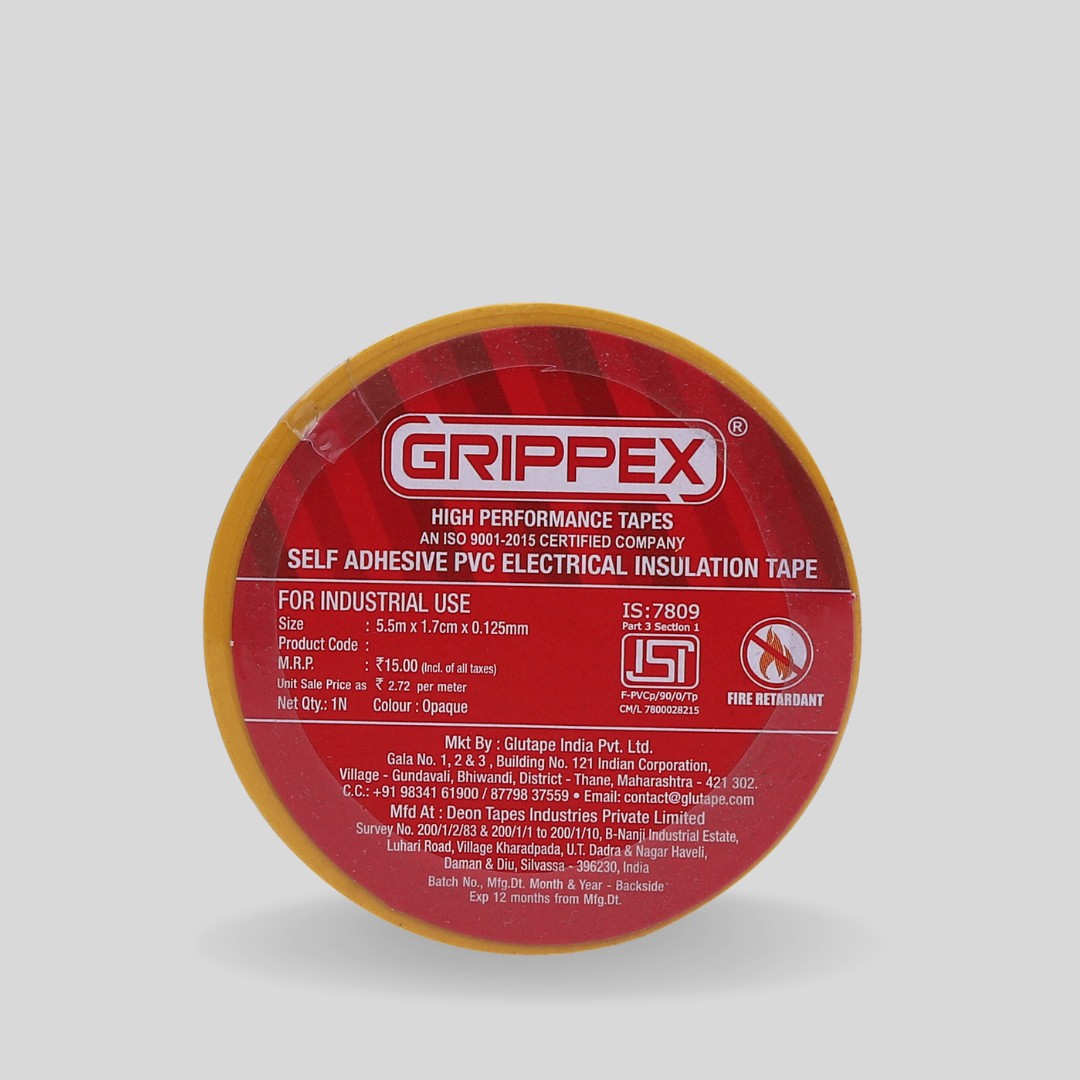

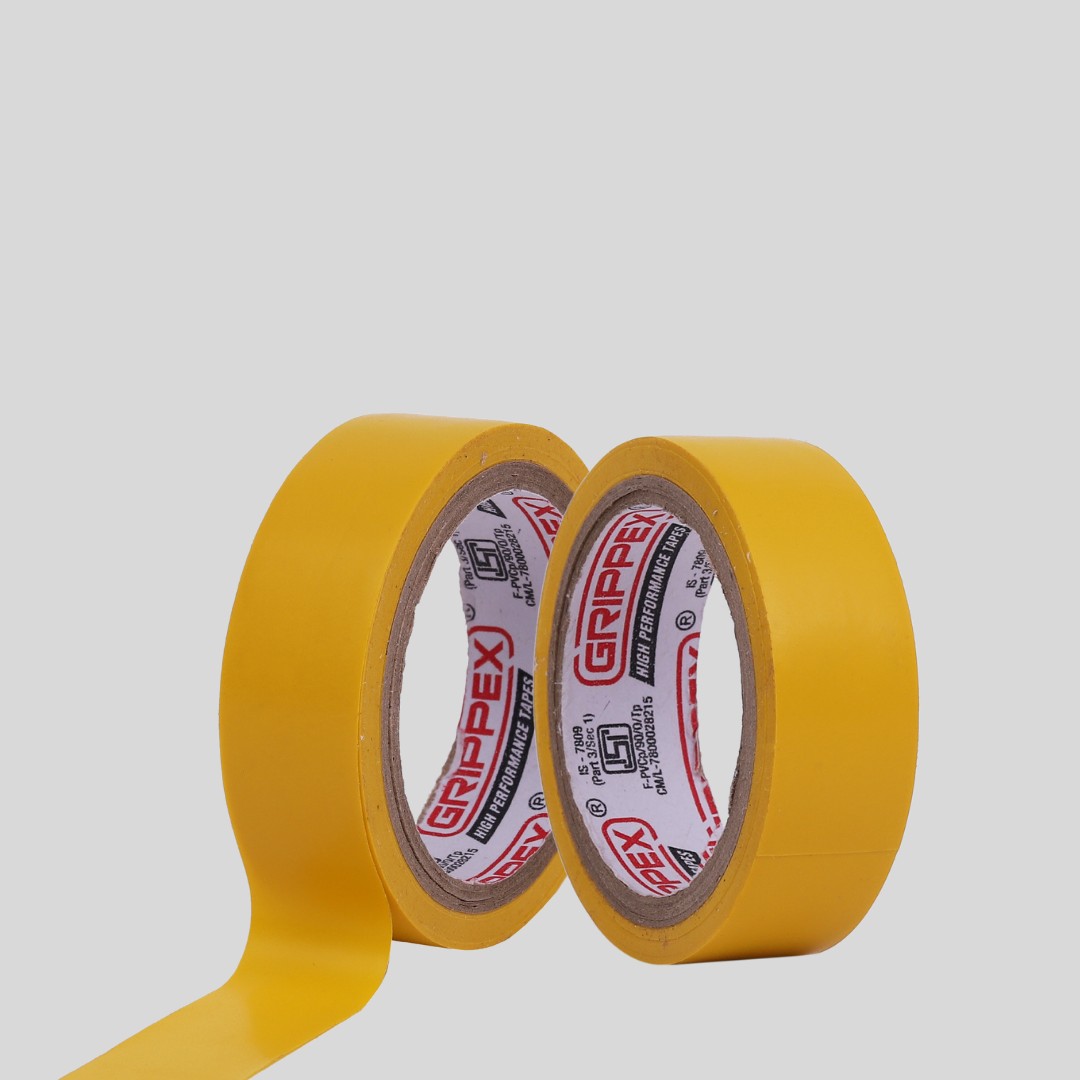

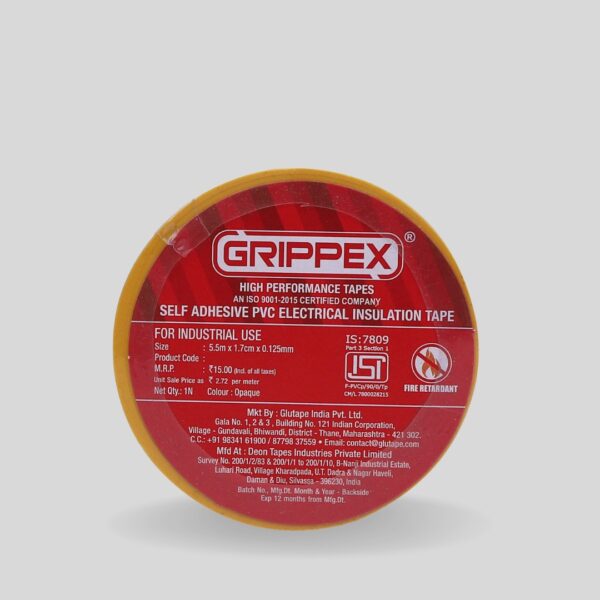

Grippex PVC Electrical Insulation Tape

Application

Primarily meant for use as insulation tape in electrical wiring, it is also used in jointing kit of telecommunication cable, automotive cable harness & many other industrial like tube./ pipe etc.

Features

• Acts as a barrier between the flame and the combustible core/insulation within the cable.
• Retains the integrity of the cable during and after exposure to fire.
• Extends the fire-survival time of the cable and its functions.
• High tensile strength aids bonding and prevents bird-caging.
• Available in widths, inside and outside diameters, and lengths to suit the cable manufacturers individual requirements.
• Retardant tape- extinguishes the fire before its is propagated.
• High stability and excellent ageing properties
• Moisture and corrosion resistant
• Resistant to Acid, Alkalis,Oil, Grease & Gasoline
• Non-migratory adhesive – Not Transferred from one face to another
• Withstands up to 6500 v AC & provides long lasting insulation thus saving from short circuits
• Indoor & Outdoor applications – Weather resistant
• High adhesion strength – Specially formulated in house made adhesive does not dry or allow the tape to be loosened
• Made out of soft and stretchable PVC film, ideal to be used on any surface.
• irrespective of shapes
• Soft, Stretchy, easy unwinding, good adhesive to adhere
• Excellent mechanical support at high temp. (Up to 80°C)
• Uniform lead free PVC film thickness tape width & assured length

Specification

• THICKNESS

0.125+0.025 mm

• ADHESION TO STEEL

1.6 N/ 10 mm width (min)

• ADHESION TO BACKING

1.3 N/10 mm width (min)

• -TENSILE STRENGTH

150 N/10 mm width per mm thick (min)

• -ELECTRIC STRENGTH at RT

40 KV/ mm thickness (min)

• ELECTRIC STRENGTH after humid condition

35 KV/ mm thickness (min)

• FLAMMABILITY

Self Extinguishing

• INSULATION RESISTANCE

1 x 10 Ohms /25 mm width (min)

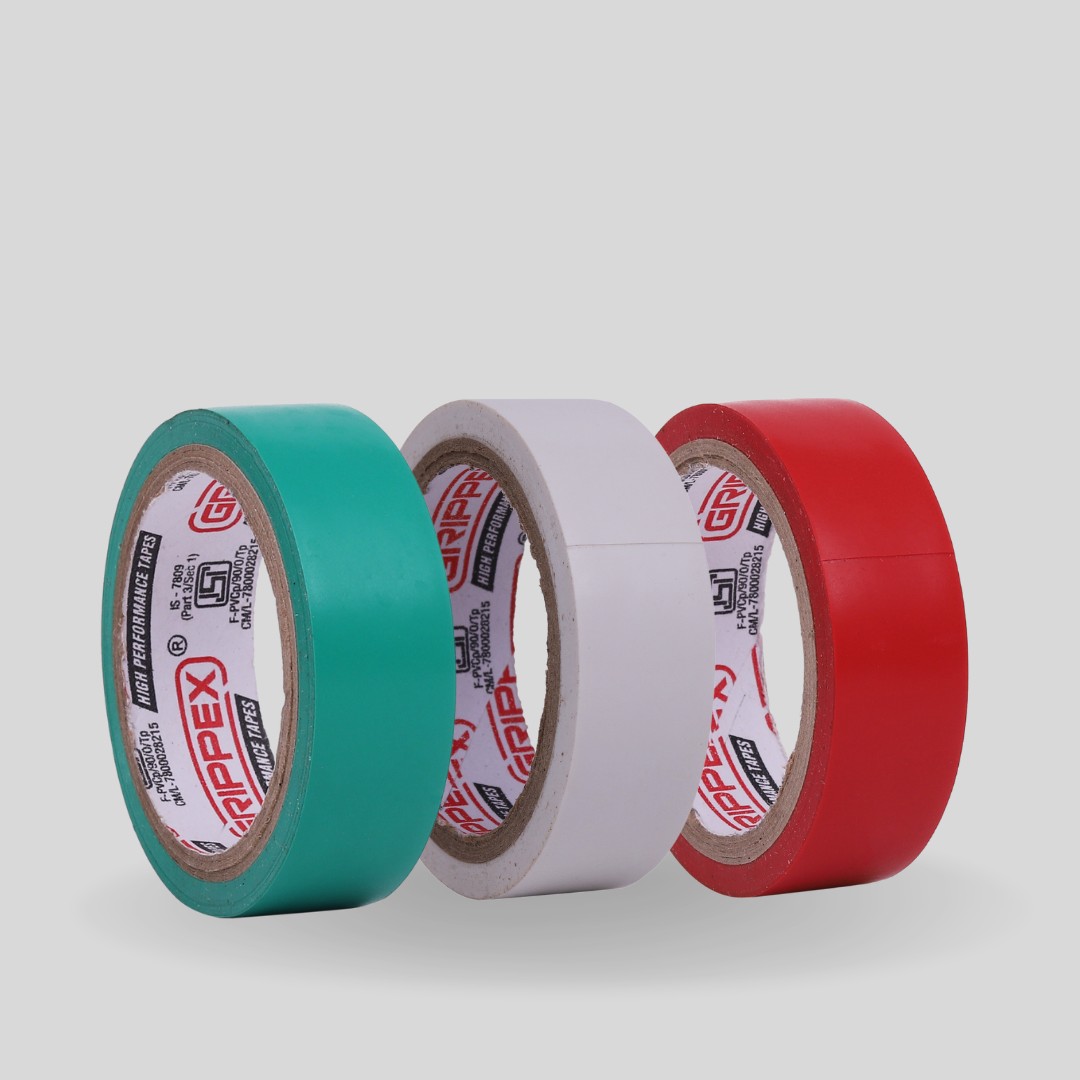

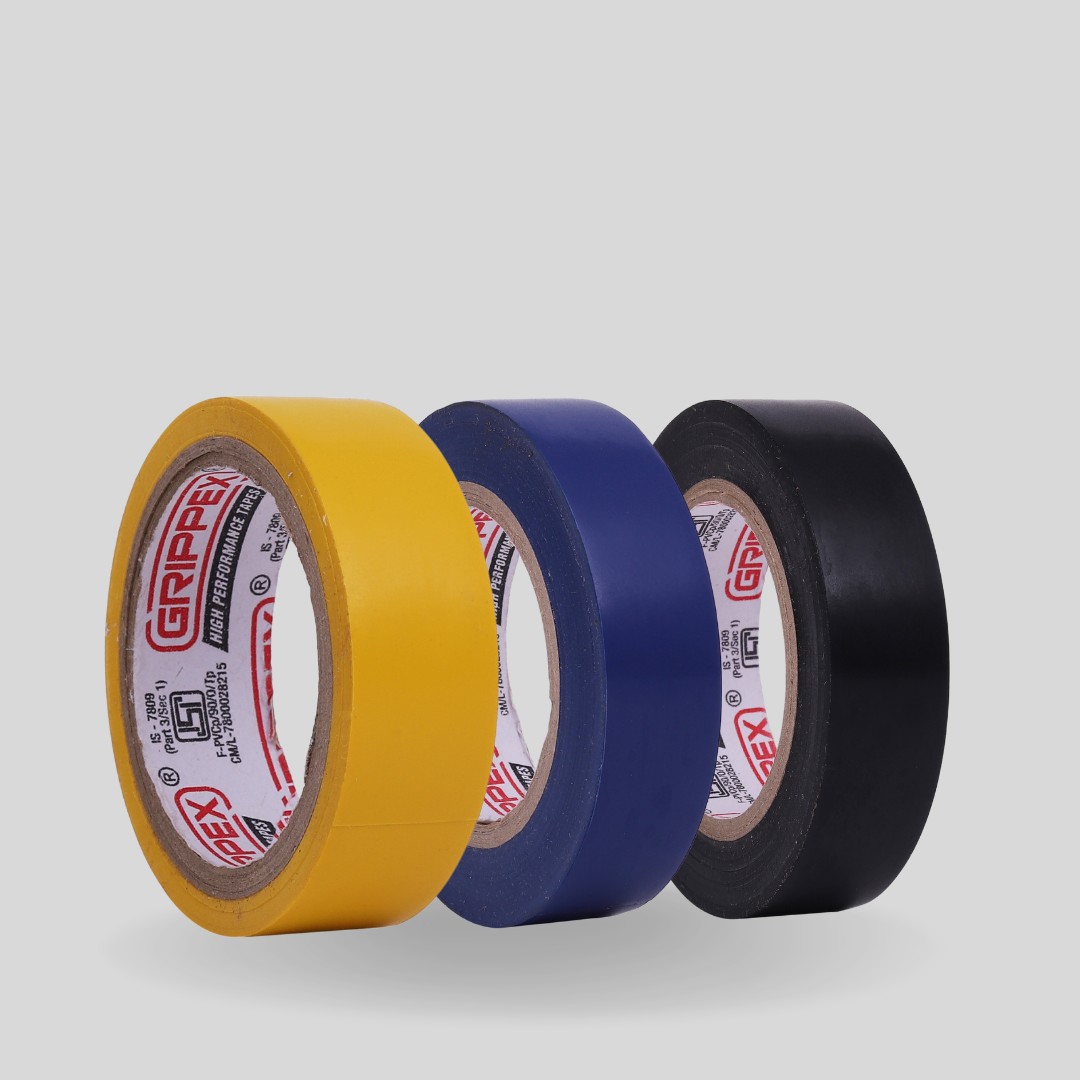

Available Colors

Red Yellow Green Purple Black White
